Precision vacuum elevators engineered for every space
Choose from three capacity models, each fully customizable with variants, upgrades, and extensions to match your architectural vision.
Select the perfect capacity for your needs
Three distinct models designed to accommodate single passengers, couples, or wheelchair-accessible spaces.
VL30
Single Person Model
Rated Load
150 kg
Speed
0.2 m/s
Outer Ø
760 mm
Inner Ø
640 mm
Installation Clearance
800 mm
Available Colors
VL40
Two Person Model
Rated Load
220 kg
Speed
0.2 m/s
Outer Ø
960 mm
Inner Ø
835 mm
Installation Clearance
1000 mm
Available Colors
VL50
Three Person Model
Rated Load
245 kg
Speed
0.15 m/s
Outer Ø
1400 mm
Inner Ø
1215 mm
Installation Clearance
1400 mm
Available Colors
Choose the installation type that fits your space
Flexible installation options designed for different architectural requirements and space constraints.

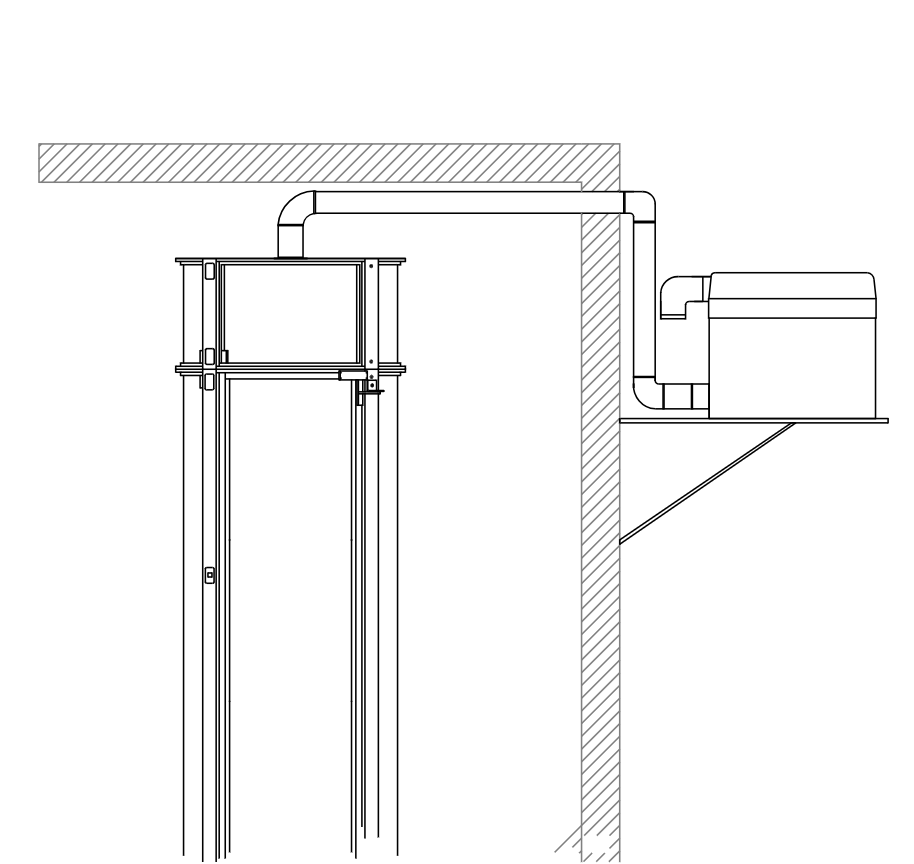

Split Unit
Designed for spaces with limited overhead clearance, offering flexible installation.

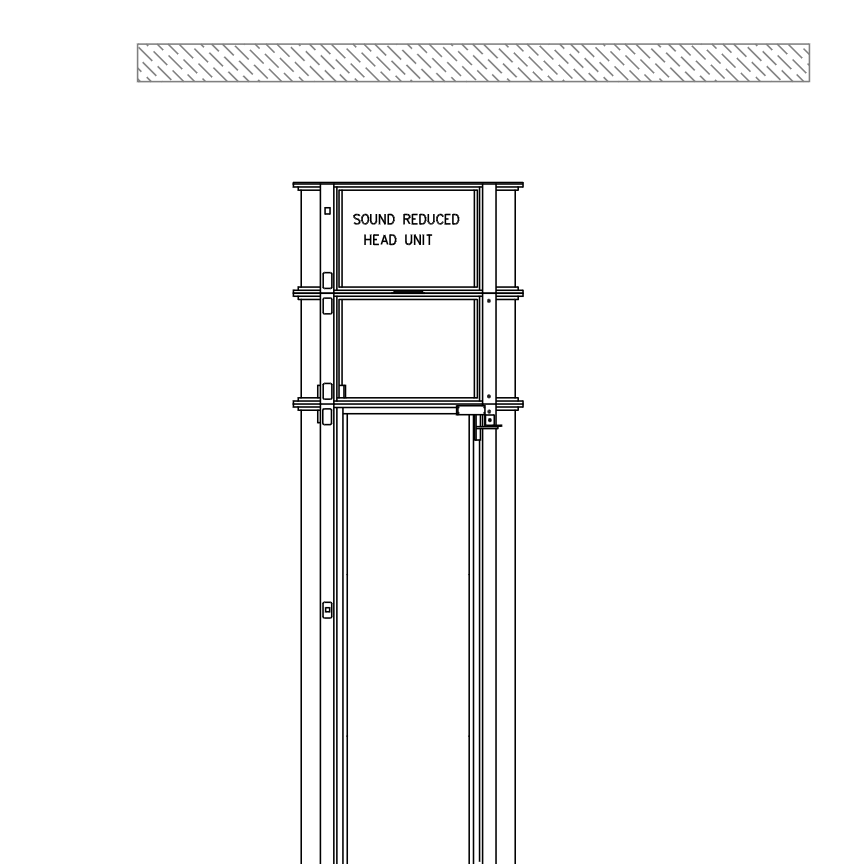

Acoustic Head Unit
Engineered for noise reduction and quiet, smooth elevator operation.
Customize your elevator
Choose colors, door configuration, tinted sheet, and remote control to match your space.

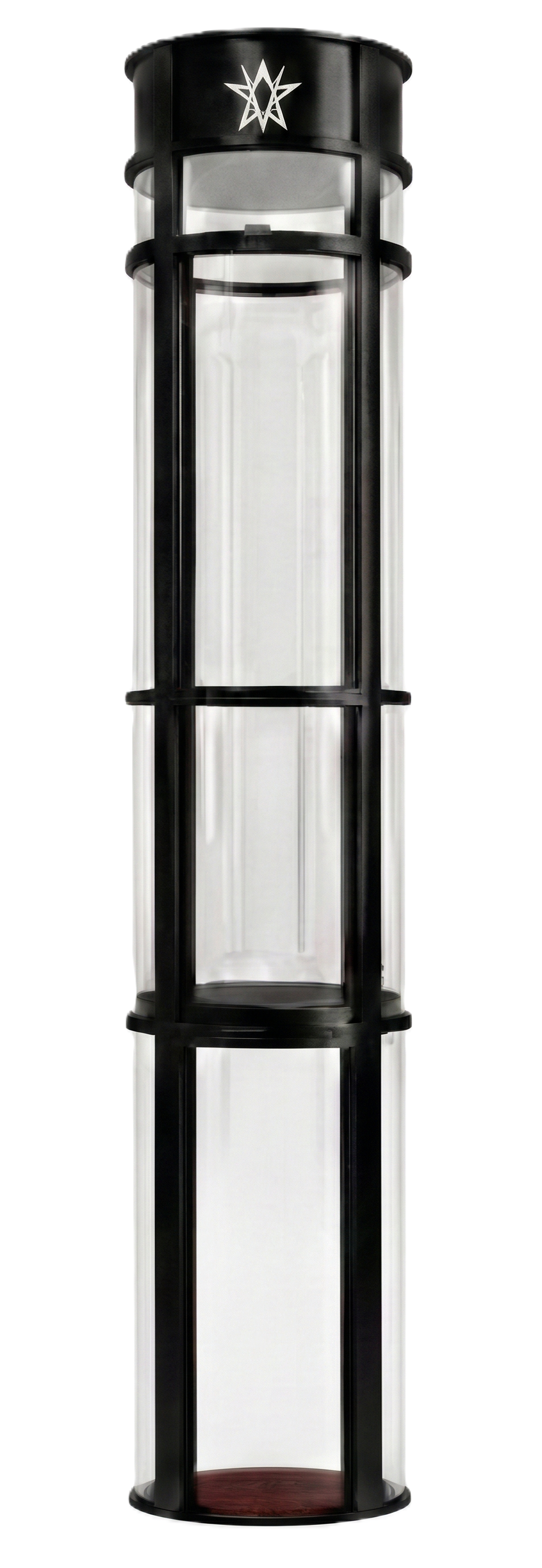

Custom Color Selection
Select from standard or special colors
Select Your Color
Door Opening Selection
Select VL30, VL40, or VL50 configuration
Select model
One-way door opening
Tinted Sheet
Custom tinted polycarbonate sheet for enhanced design and durability.
Select option
Clear / black frame
Remote Control
Remote elevator operation for convenience and accessibility.
Remote elevator operation
Remote elevator operation for convenience and accessibility.
Add advanced features for enhanced functionality and security
Extend your elevator's capabilities with smart integrations and security features.

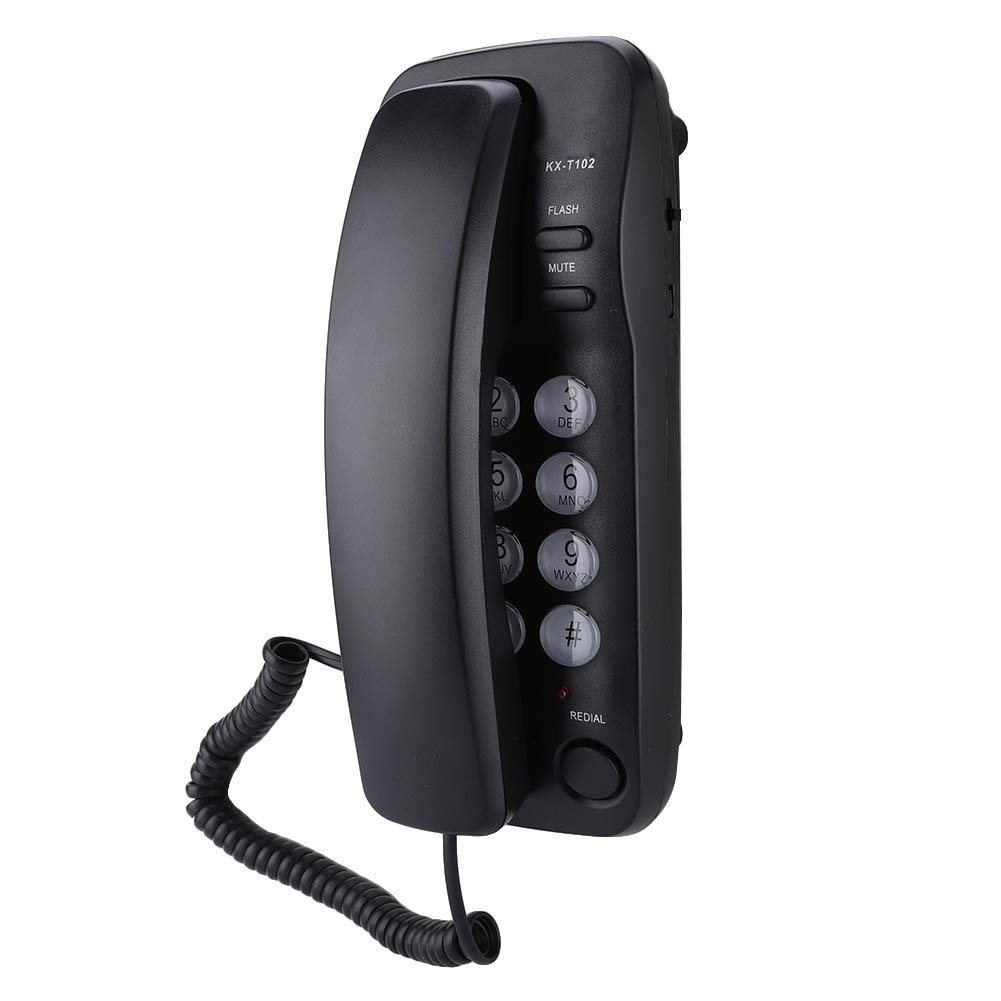

Cabin Phone
Cabin phone connected via landline or SIM module for emergency communication.
Cabin Phone
Cabin phone connected via landline or SIM module for emergency communication.
Smart Integration
Supports smart home systems and remote operation.
Smart Integration
Supports smart home systems and remote operation.

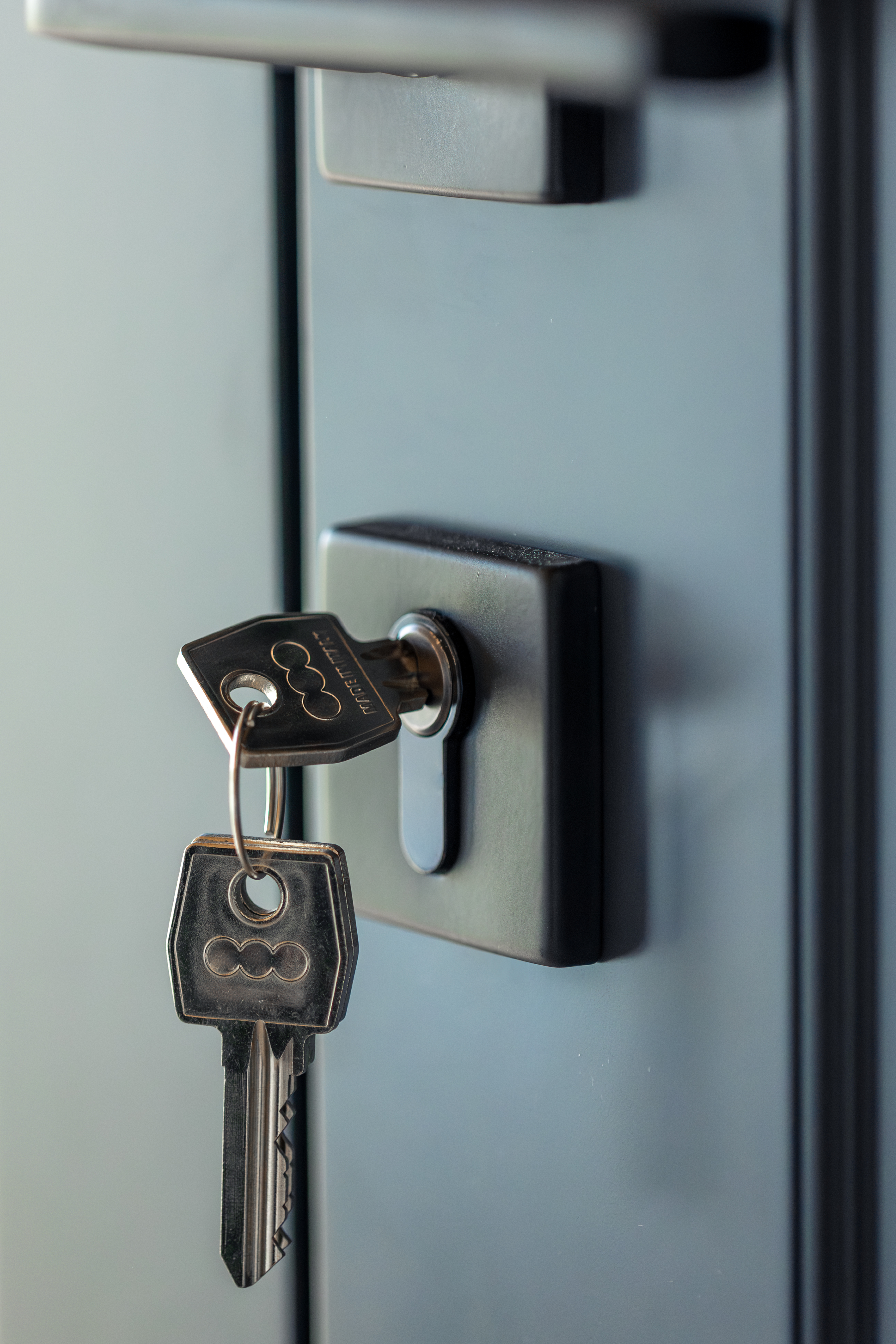

Cabin Lock
Enhances security and prevents unauthorized access.
Cabin Lock
Enhances security and prevents unauthorized access.

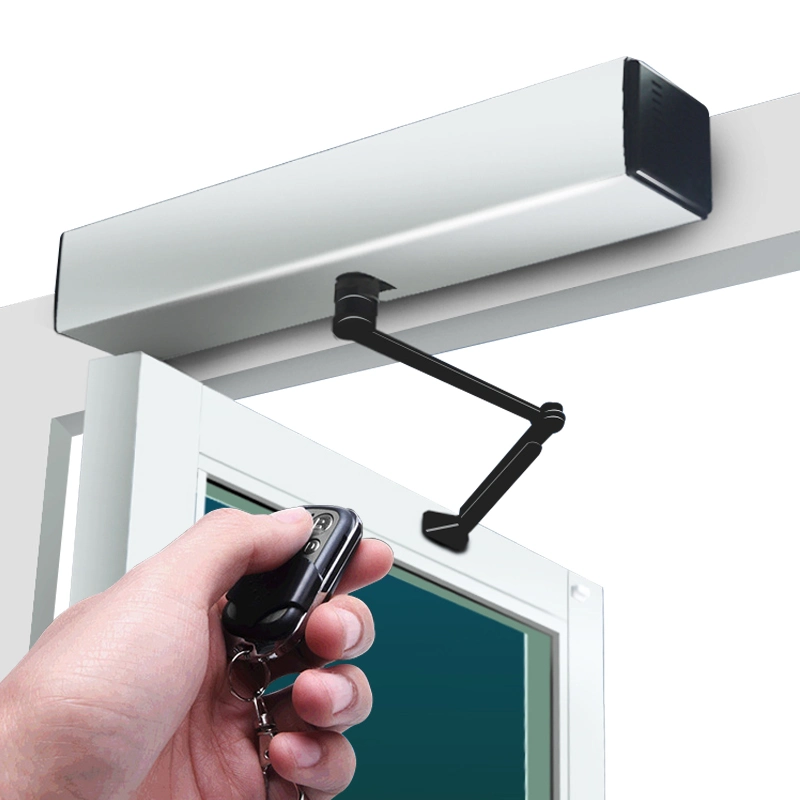

Auto Door Closer
Automatic door closing system for smooth and safe operation.
Auto Door Closer
Automatic door closing system for smooth and safe operation.
Ready to customize your perfect elevator?
Our team will help you select the ideal model, variants, upgrades, and extensions to match your space and requirements.
